Fitting intercooler to a KZN130 3.0

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Fitting intercooler to a KZN130 3.0

    Hi folks I've just been searching for threads regarding this but couldn't find anyone that has done it on a gen 2 3 litre.

    Has anybody and got a link to pics and stuff and would it be a usual L200 top mount job and bonnet vent?

    I'm already on body lift as well so I have the room to fit it on top.

    Cheers

    Marty

  • #2
    http://toyotasurf.asn.au/techsite/performance.htm

    Comment


    • #3
      Outstanding thank you

      Comment


      • #4

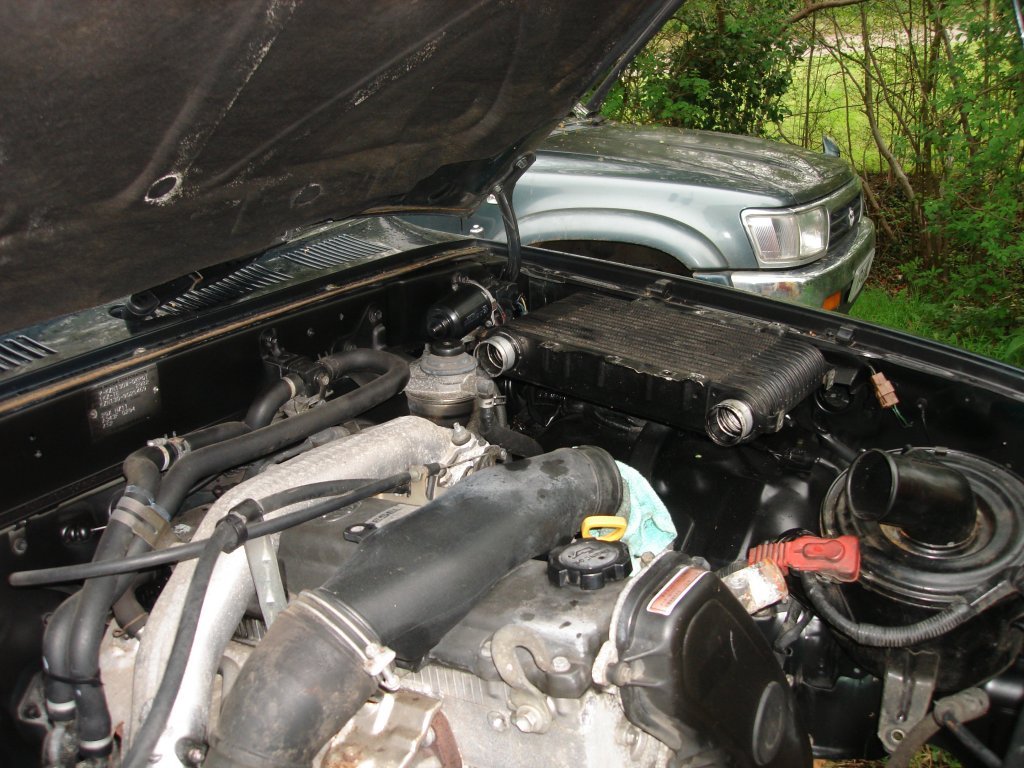

        Blizzards truck has the mechanical fuel pump which makes it easier to do top mount.

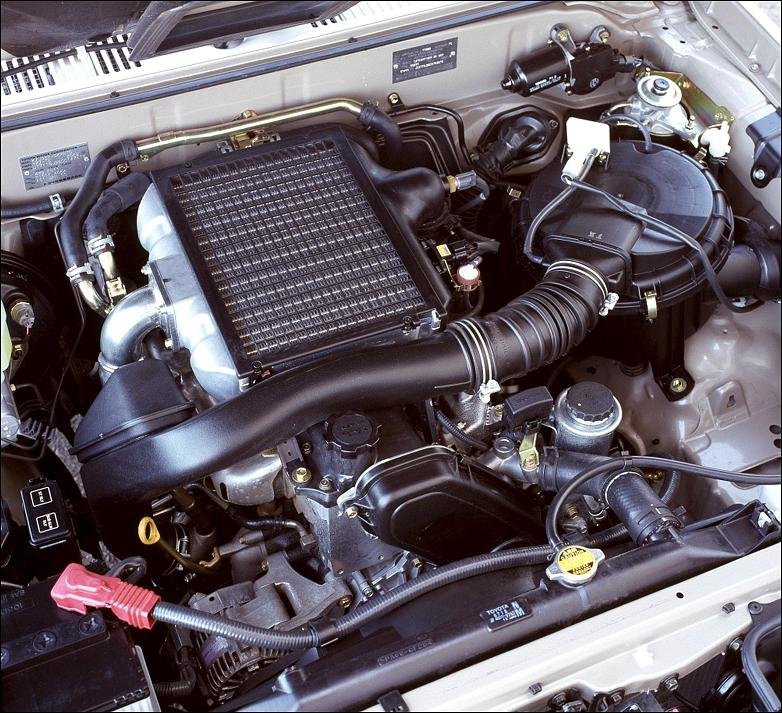

        The surf 3.0 will need the 2 cables that attatch to the throttle body re-routed and new mounts made up. Easiest option is to try and find the bits from a 3rd gen intercooled version. Easier still is to buy the intercooler / cables / throttle body linkage etc off a breaker. The same setup is used in the prados I think.

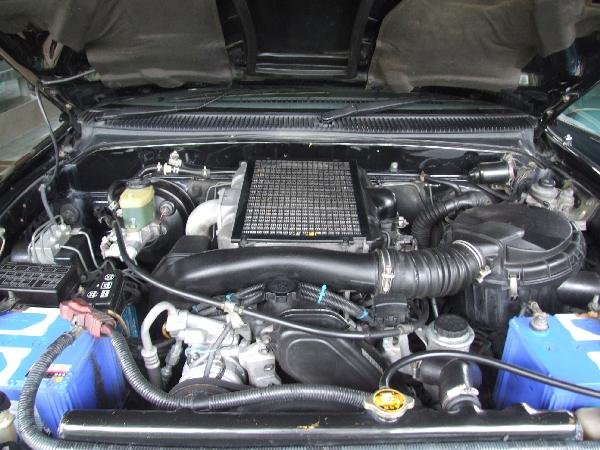

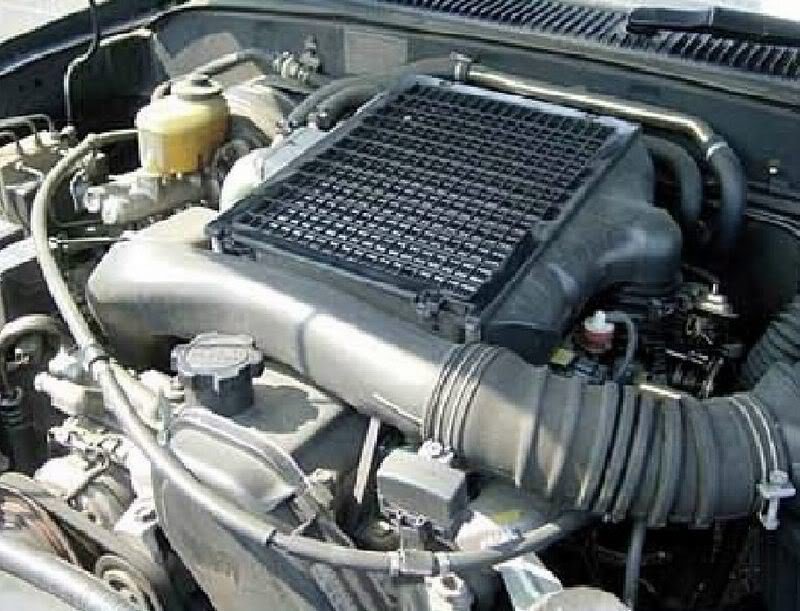

        Some pics.

        Rob.
        Attached Files

        Comment


        • #5

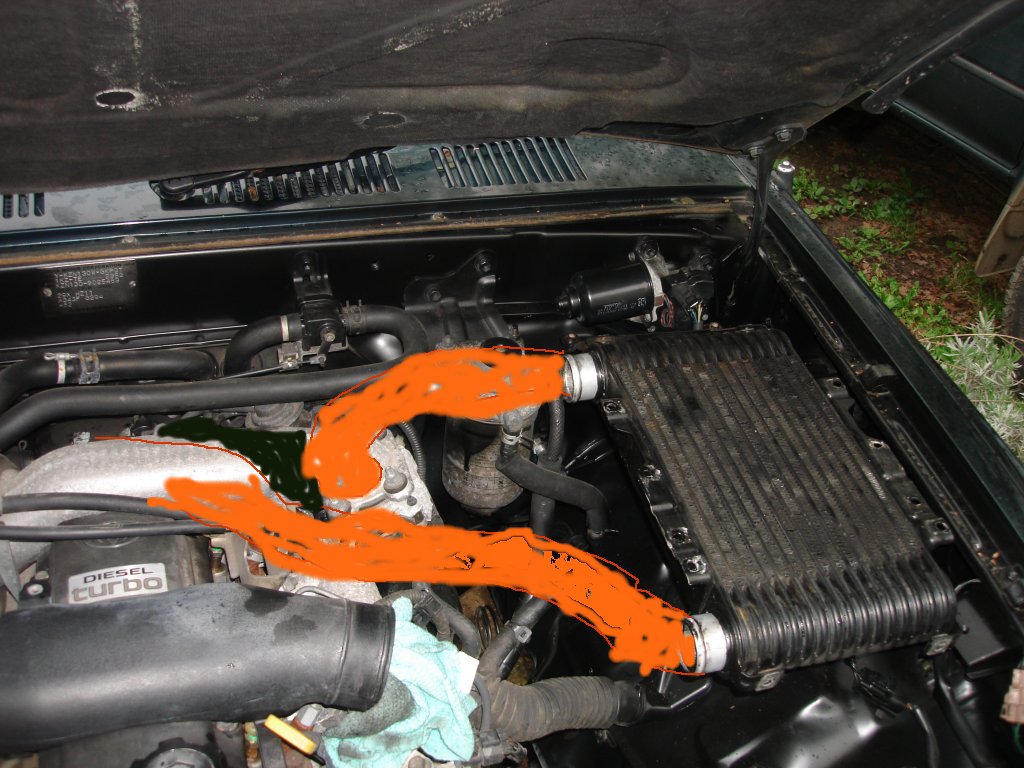

          Before I fitted my snorkel I was thinking of using a pajero ic at the side of the engine.

          Sorry about the dodgy paint but it shows how I was planning to route it.
          Attached Files

          Comment


          • #6
            Originally posted by wishbone View Post
            Before I fitted my snorkel I was thinking of using a pajero ic at the side of the engine.

            Sorry about the dodgy paint but it shows how I was planning to route it.
            I love the dodgy paint! Hehe
            If I like it, Bushwhacker doesn't. :-)

            Comment


            • #7
              That gives me a few ideas of how I'm going to fabricate the install

              Comment


              • #8
                show us when you done it!
                the wolf is always bigger when you are scared!!

                Comment


                • #9
                  i prefer the idea of it not being over the engine for heat soak reasons

                  never found the answer to this, but if you get the IC parts from a Gen3 Surf, is it a straight bolt on fit (well apart from maybe cutting a hole in the bonnet)?
                  RZN185 1" lift, 32s - KZN130 2" lift, 32s

                  Comment


                  • #10
                    Originally posted by boma23 View Post
                    i prefer the idea of it not being over the engine for heat soak reasons
                    you can always retrofit a fan connected to the temp sensor some intercoolers got
                    the wolf is always bigger when you are scared!!

                    Comment


                    • #11
                      Once fitted is any sort of 're-mapping' needed?

                      Comment


                      • #12
                        Originally posted by cazyp View Post
                        Once fitted is any sort of 're-mapping' needed?
                        you don't have to. but remapping or chipping it can make use of the IC to make more power, but its not compulsory.

                        Comment


                        • #13
                          Curious

                          What are the benefits of an intercooler, i get that cooler air more oxygen etc, and i gather it increases power but does it also increase MPG?

                          Comment


                          • #14
                            Originally posted by Jameswallace View Post
                            Curious

                            What are the benefits of an intercooler, i get that cooler air more oxygen etc, and i gather it increases power but does it also increase MPG?
                            it can increase economy IF its done correctly. even better if the timing is tuned for it to.

                            Comment


                            • #15

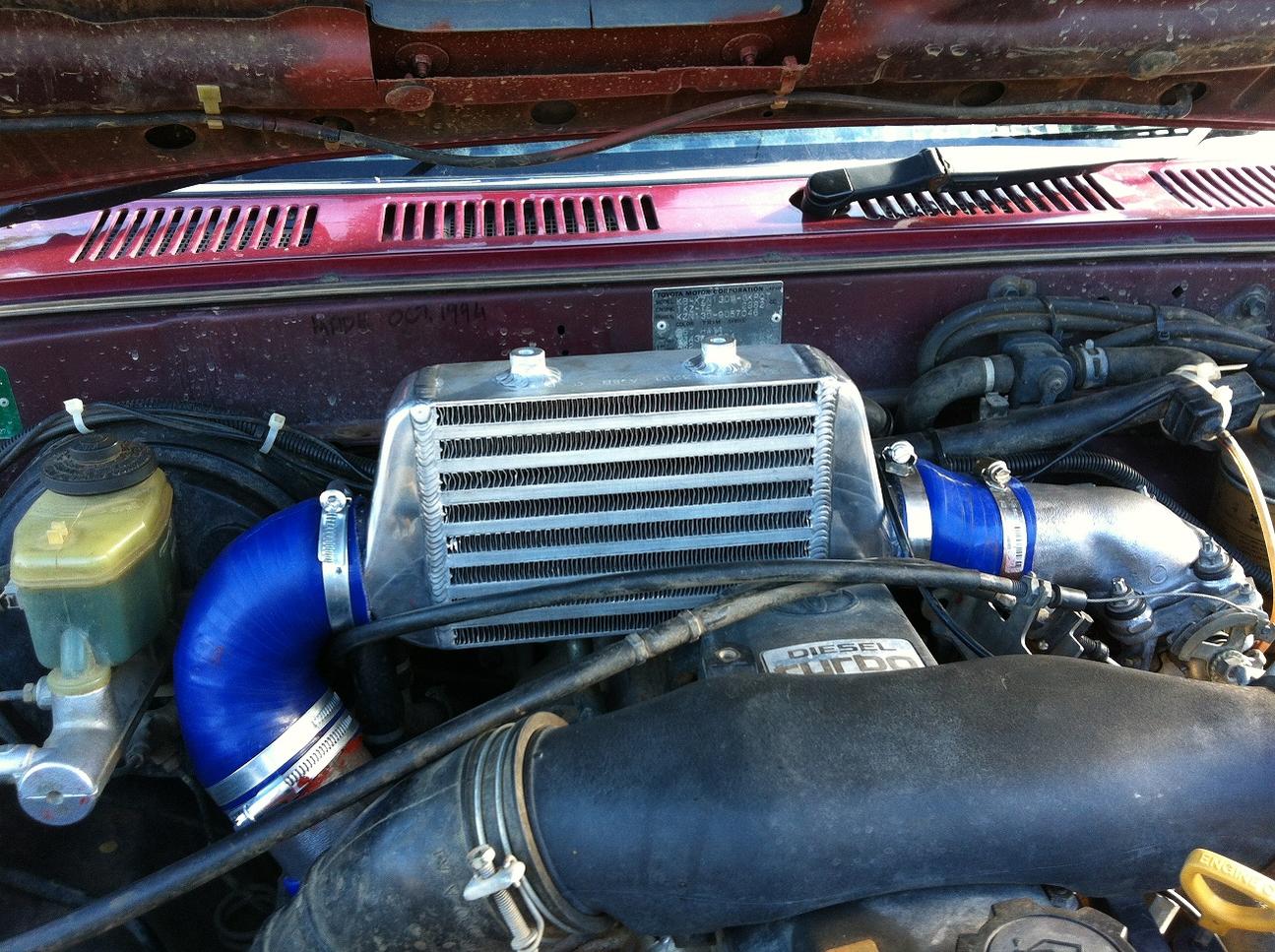

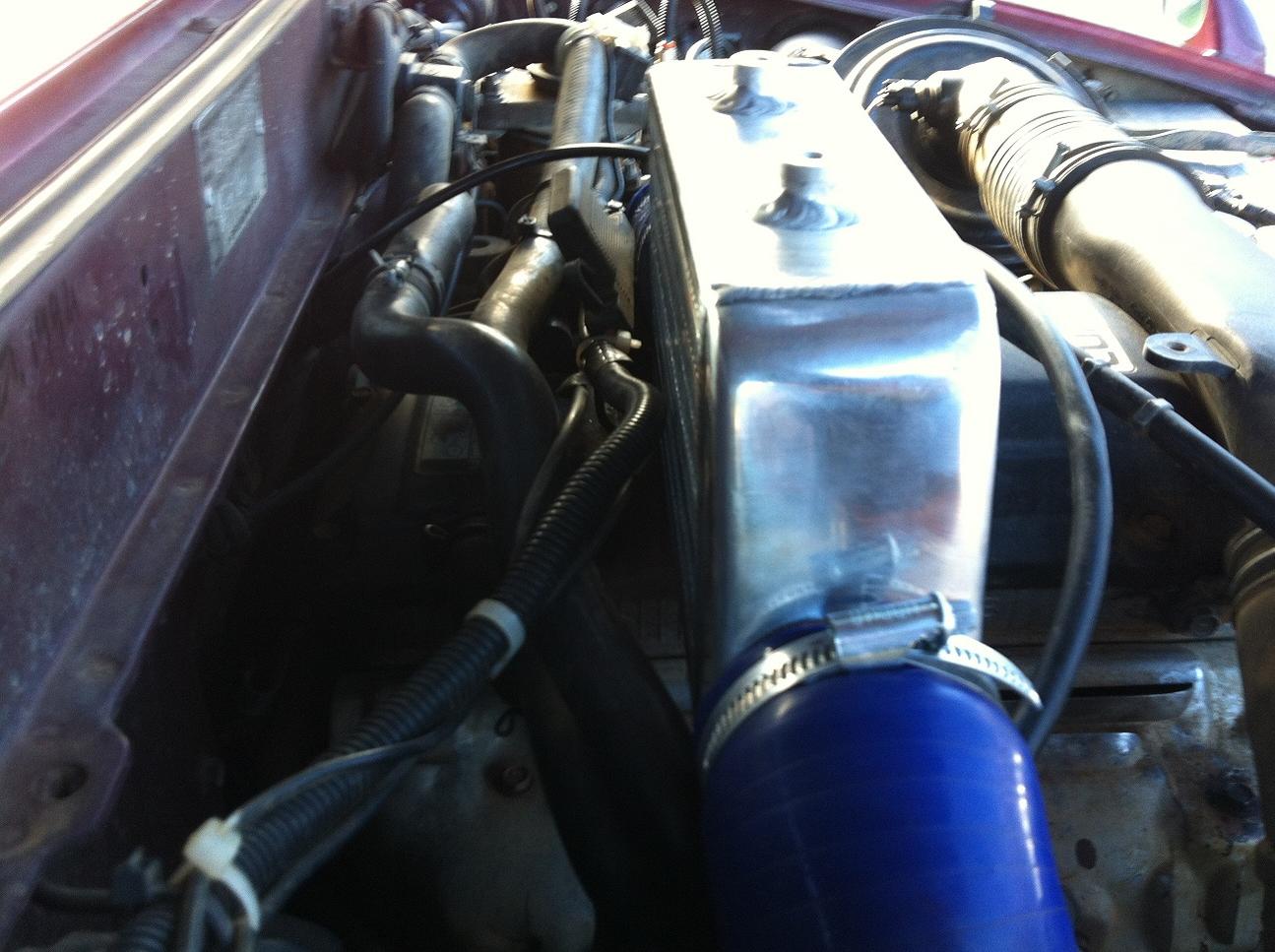

                              here is mine that I did

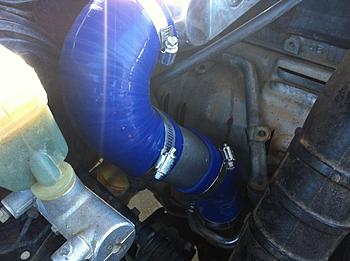

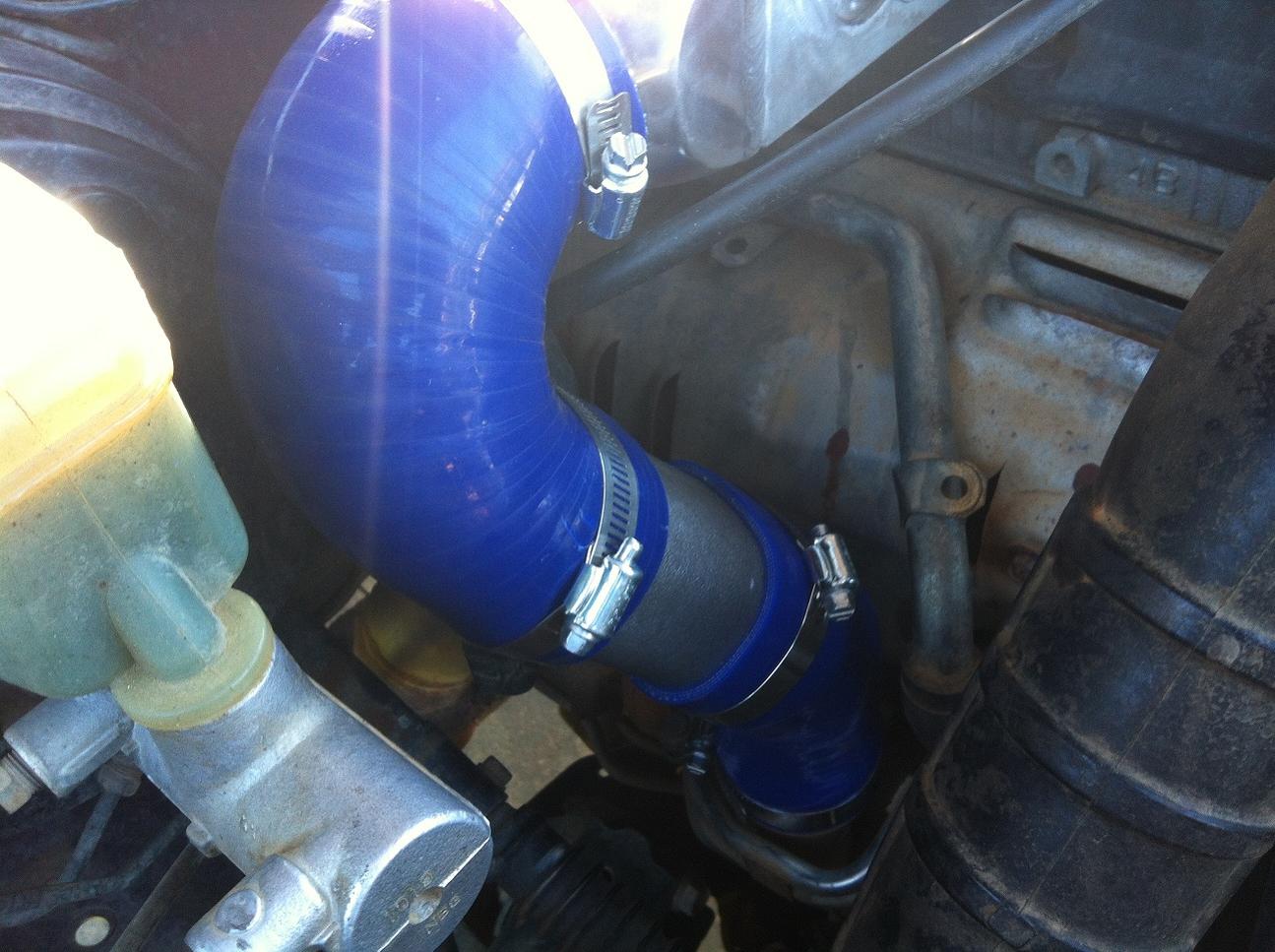

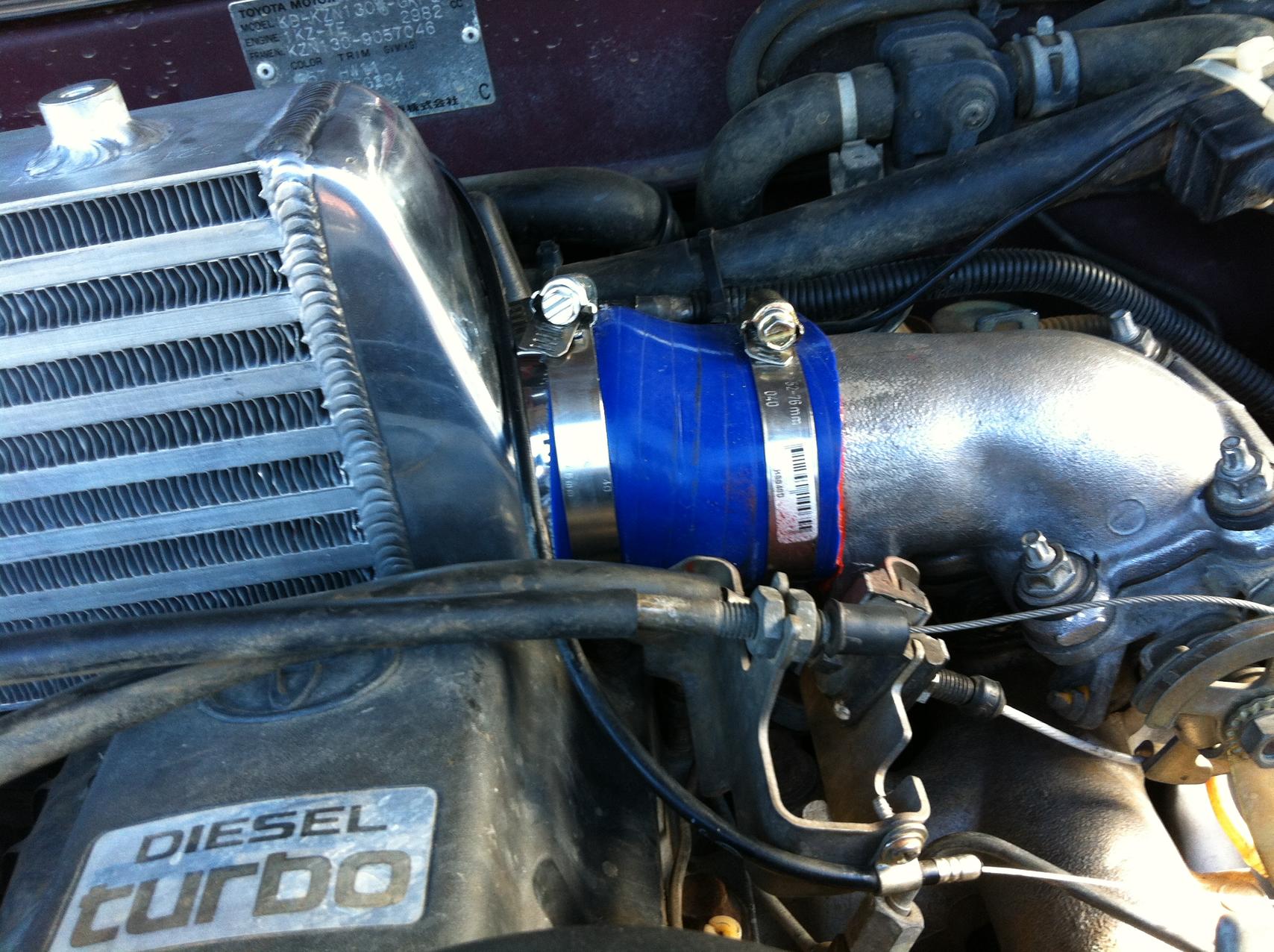

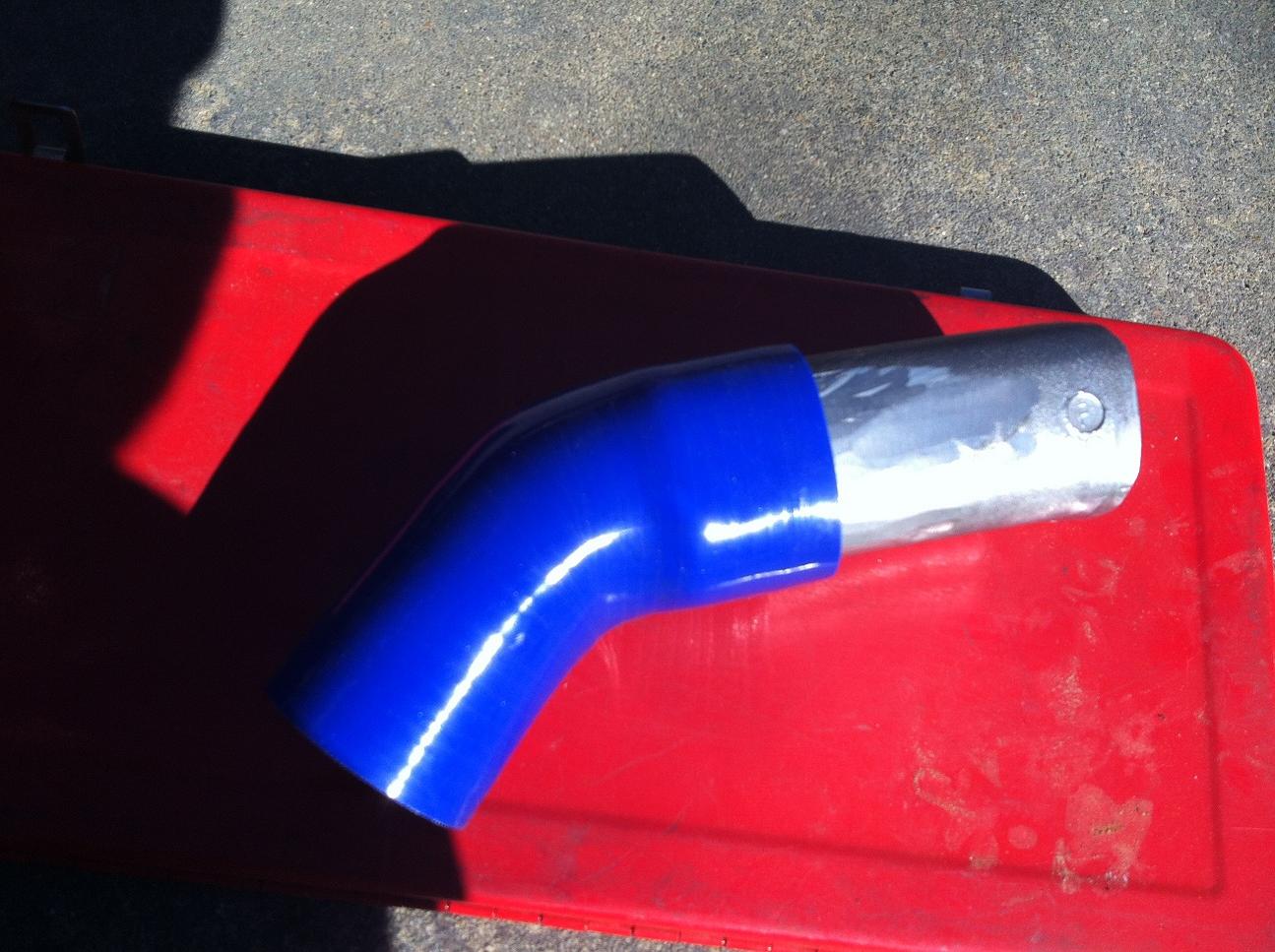

                              I bought a small intercooler off ebay, 1x 2.5" 135* silicon hose, 1x 2.5 to 2 " 45* bend and I already had a bit of hose to the throttle body end. I just cut up the original cross over pipe and fitted that where ever I needed pipe

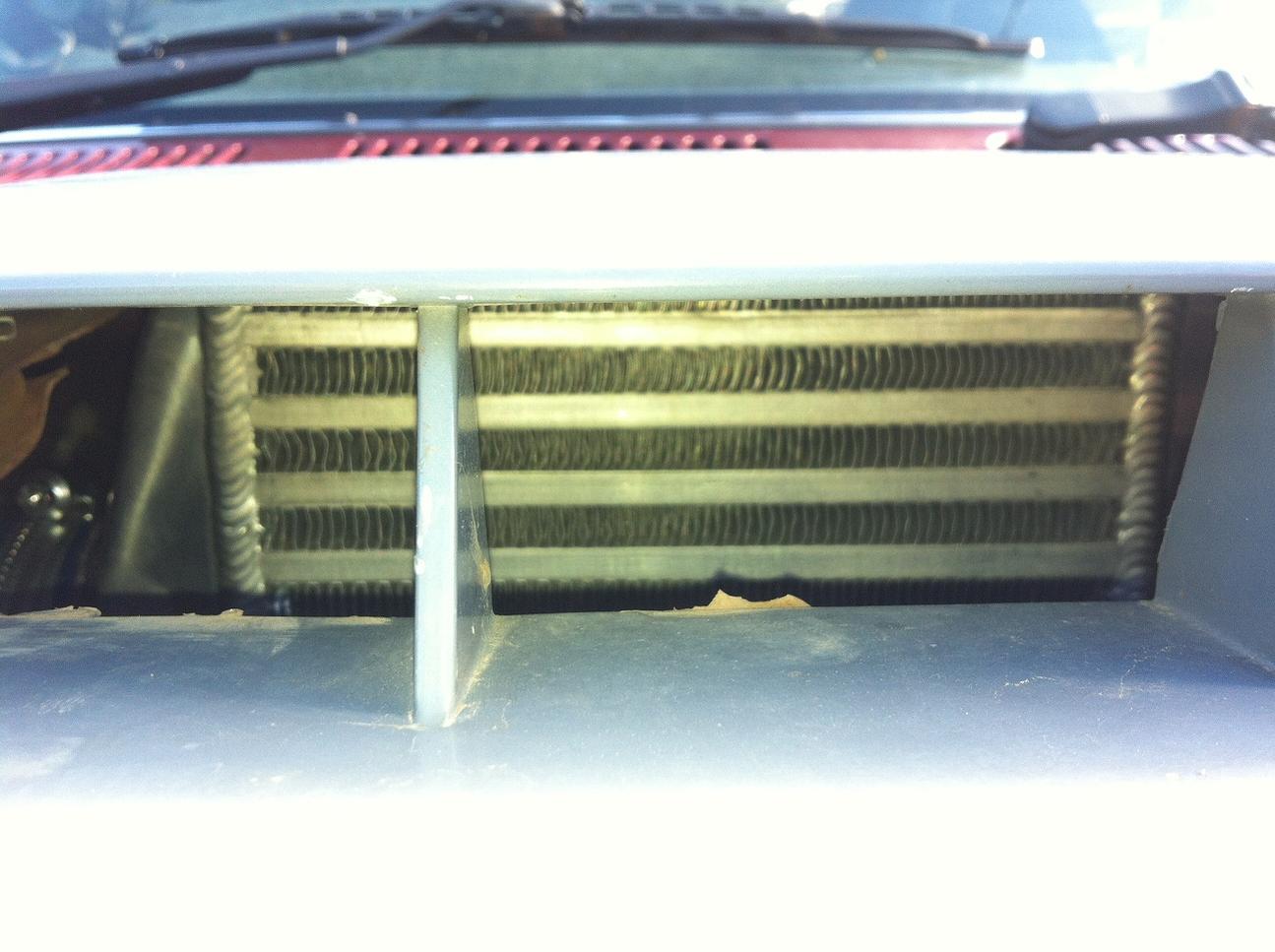

                              I had cut in a nissan patrol scoop also
                              Attached Files
                              http://www.hiluxsurf.co.uk/showthread.php?t=80260
