Cooling system for gen 3

[langtounboy]

Does anyone have a link to the schematics and layout for the 3rd gen 3L cooling system.

When I'm on the subject has anyone had to replace the coolant pipe that runs under the exhaust manifold

[NiftyNev]

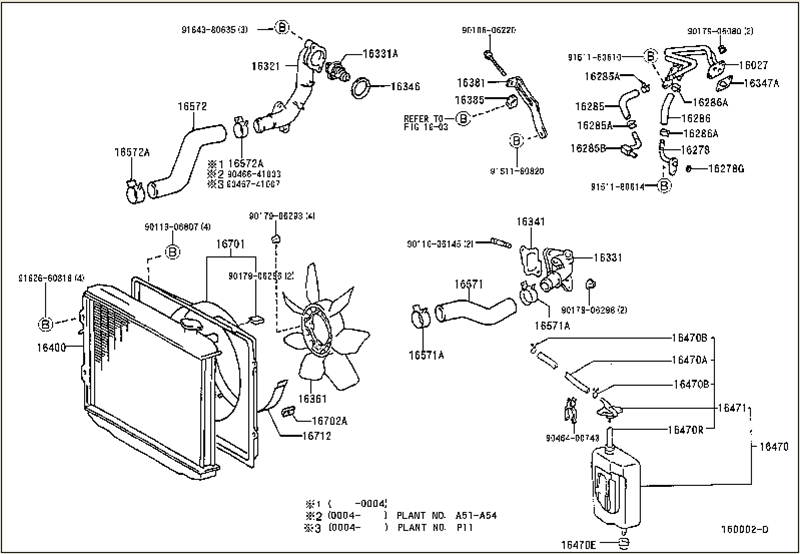

I suspect your leak is from the Turbo coolant pipes or hoses. Top right of this diagram which is the best I can do. If you can identify the exact point of leak I can look up part numbers.

Nev

[langtounboy]

Thanks for the diagram as soon as I can get the heat shield off I'll be able to confirm the part. Are these pipes easy to get hold off, manufuacture.
