4WD Relays

[MudSurfer]

Hi All - can anyone please tell me where the relays are for the 4WD???

Once I know, I'm going to swap the ones over between the 3.0 and 2.4 and see if it's those that are causing the 4WD failure.

I've changed all the VSVs I can see, and the pipes as much as possible, but still no joy.....

[plumb bob]

Hey Andy, have a look at this link,

http://www.toyotasurf.asn.au/techsite/add.htm

if you haven't already, other than that, I did find a post saying that there is a 4wd relay adjacent to the brake pedal.
Hope this helps.

Rob

[MudSurfer]

Cheers Rob - I wish there was one for the 3.0L, as this one covers the 2.4 that has a vacuum tank under the OSF wheel arch....but it should help me out....

And I'll get looking for the relay once this is printed out...

[plumb bob]

Cheers Rob - I wish there was one for the 3.0L, as this one covers the 2.4 that has a vacuum tank under the OSF wheel arch....but it should help me out....

And I'll get looking for the relay once this is printed out...

I got it from the 3.0ltr section, but the guy who had the relay by the brake pedal deffo had a 3.0ltr.

Do you have a haynes ??

[MudSurfer]

I got it from the 3.0ltr section, but the guy who had the relay by the brake pedal deffo had a 3.0ltr.

Do you have a haynes ??

Erm - I've got the Aussie book......but couldn't find anything about it in there...

[plumb bob]

Can't find anything in the haynes manual either, how could all these people miss such a huge section of info out of the manual????????

[stormforce]

Andy i know on the 2.4 there is a 4wd black box thing under the front of the centre consol but not sure on the 3l tho

[MudSurfer]

Hi - I've found the 4WD control computer thingy, replaced the VSVs by the battery and the VSVs behind the engine, checked all the pipes, all the connections, all the power connections, the brake servo, switch on the transfer lever, cables and all sorts and this is where I am.....

Engine off ignition on - press switch on transfer lever - hear relay click, and (I think) sleeve engage (clunk sound) - press switch again, relay clicks off

Engine on - press switch on transfer, relay clicks on - move backwards, relay clicks off, then on, then off - move into D click on/off but this gets more frequent when applying the brakes (maybe something to do with vacuum from the brake servo??) but still relay clicks on and off.

I can't find the relays to swap them, unless the relay is actually the black control box behind the dash/stereo area???? the rain is getting worse, the light is fading and so are my hopes of ever getting this 4WD to work...

[Garygadget]

Dont know if these links might help ??
http://www.afm15.dial.pipex.com/surfpictures/Techy.htm http://www.toyotasurf.asn.au/techsite/index.htm

[Garygadget]

or this ?

http://forums.bauchan.org/portal/downloads.php

[The Lang-Shankit Scunner]

Mate a quick probable try is what i discovered when chaning my altenator. I knocked off the 2 pipes from the solenoids leading down to the diff. I put them back but wrong way around, and when i hit the 4wd button it engaged for a short time then dissengaged, and try and try again same thing happened. Swiched them over and it works fine....... Just a thougt buddy

[MudSurfer]

Mate a quick probable try is what i discovered when chaning my altenator. I knocked off the 2 pipes from the solenoids leading down to the diff. I put them back but wrong way around, and when i hit the 4wd button it engaged for a short time then dissengaged, and try and try again same thing happened. Swiched them over and it works fine....... Just a thougt buddy

Cheers Carl and Gary - I'm downloading the workshop manual now, and will fiddle with the pipes in the morning, although I'm pretty sure I put them back the right way around, but can't hurt to check....

[Garygadget]

i have another 1 here
Everything you need to know about your Surf 2nd generation-
owners manual and workshop manual
i found this on another surf web site its a rar file

Surf 2g info

Thanks to bauchan.org


http://www.desoxxx.co.uk/Surf%202g.rar

[Diezel Weazel]

Sorry to butt in Andy as I've not read all the postings!!
Not sure what probs ya having... (4WD was it ) I was having trouble wiv me
4WD at Salisbury Plain couple O' years ago, (Maverick or Woodzie might remember n might point ya to the post)I did post but Forum crashed more than once since then) turned out it was the relay up in the footwell above brake the pedal .... (knuckle n finger scapping hazzard)
Hope it helps Andy
Jess

there's always a Payback .... Ya just never see it Comin !!!!!

[NiftyNev]

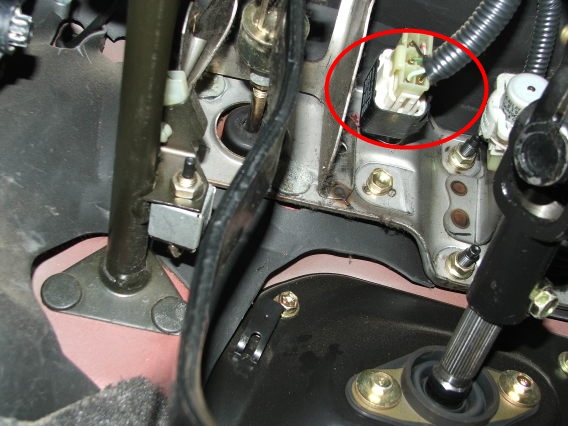

ADD Relay is on the Brake Pedal Bracket and is marked "Fuel Pump Relay"

Nev
