    can anyone help me and let me know the layout for the fan / alternator and air con belts are fitted???

    cheers dean

  • #2
    Originally posted by deancherry
    can anyone help me and let me know the layout for the fan / alternator and air con belts are fitted???

    cheers dean

    Do you mean the order in which they are fitted?

    Alternator belts first, then the air-con belt then the power steering.

    Some useful stuff here too....

    http://www.toyotasurf.asn.au/techsite/

    p.s. Give us a clue which Surf/engine you have, put the details in your profile.

    Comment


    • #3
      Originally posted by BUSHWHACKER
      Do you mean the order in which they are fitted?

      Alternator belts first, then the air-con belt then the power steering.

      Some useful stuff here too....

      http://www.toyotasurf.asn.au/techsite/

      p.s. Give us a clue which Surf/engine you have, put the details in your profile.
      Could do with a pic showing which pulley's all the belts go on as me water pump seized and broke the fan belts (2.4lt 1994 Surf)

      Comment


      • #4
        Originally posted by deancherry
        Could do with a pic showing which pulley's all the belts go on as me water pump seized and broke the fan belts (2.4lt 1994 Surf)

        Can't help with a photo, but the bottom pulley has four belt grooves, the two nearest the engine are for the alternator belts, the third groove is the air-con and the front groove nearest the radiator is for the power steering belt.

        Comment


        • #5
          Originally posted by BUSHWHACKER
          Can't help with a photo, but the bottom pulley has four belt grooves, the two nearest the engine are for the alternator belts, the third groove is the air-con and the front groove nearest the radiator is for the power steering belt.
          thanks vince well atleast thats a start i'll take a look in the morning

          Comment


          • #6

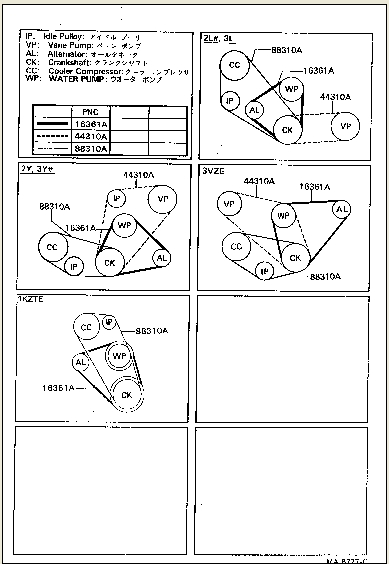

            Belt diagram.

            Nev
            Attached Files

            Comment


            • #7
              Originally posted by NiftyNev
              Belt diagram.

              Nev

              a big thanks to vince & nev im know back up and running

              cheers lads

              Comment
