Electrical Diagrammes for KZN130

[jacp]

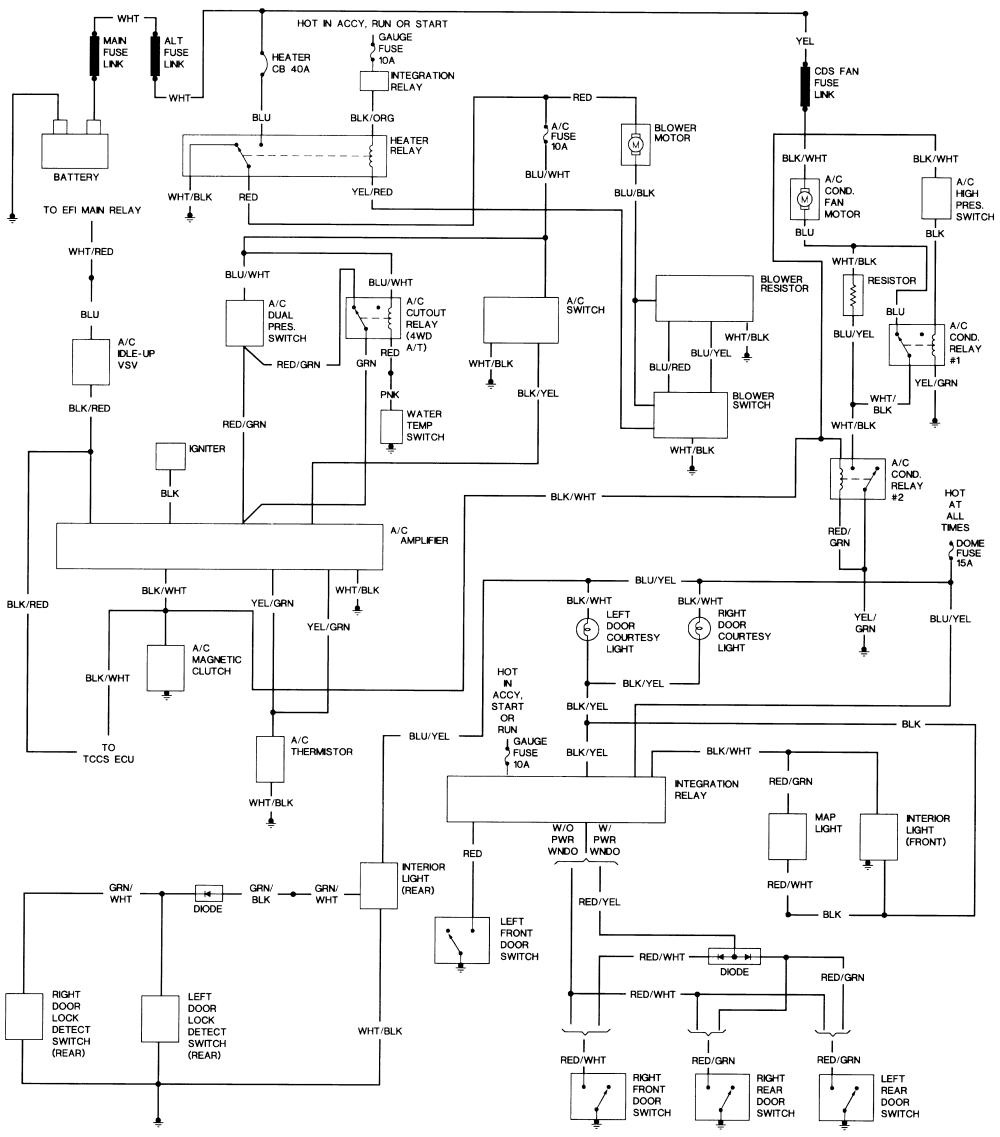

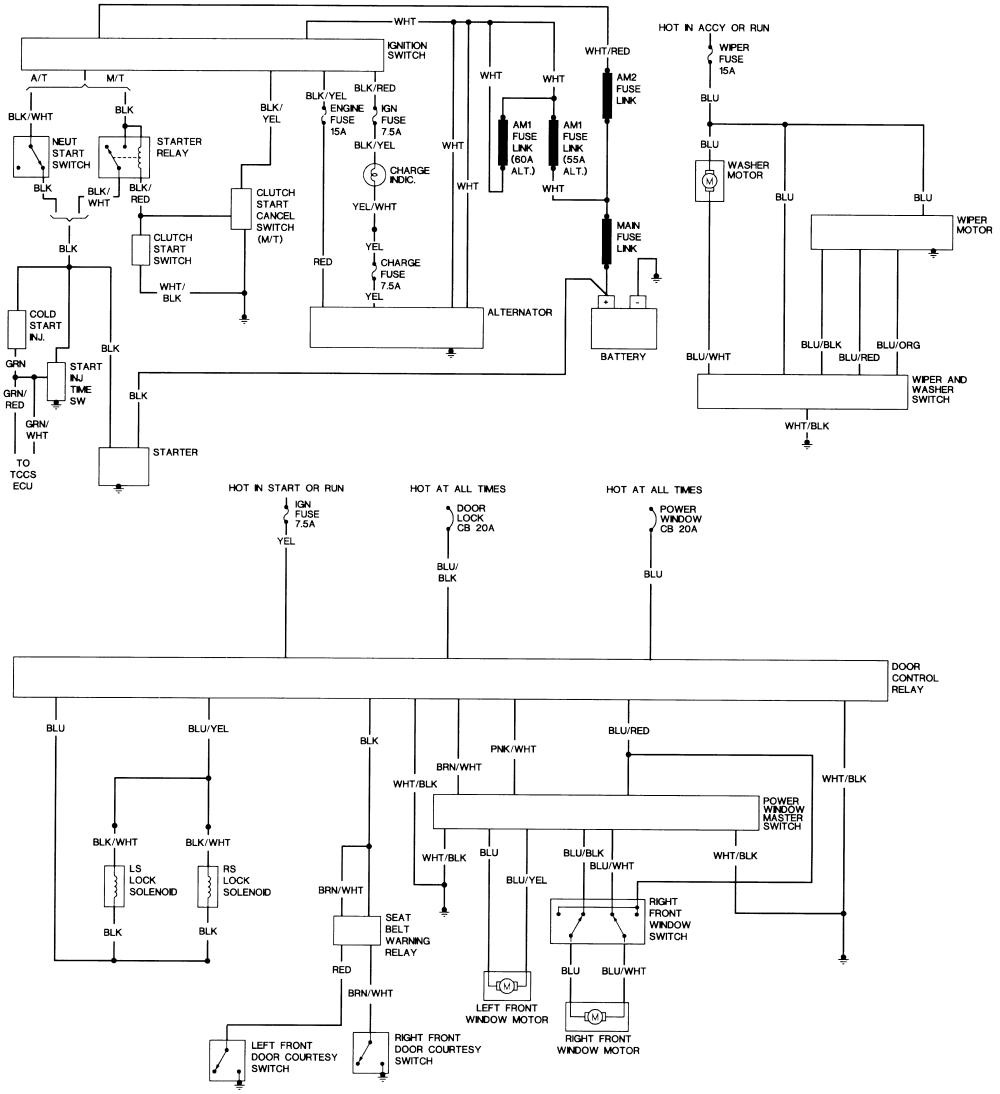

I had a quick browse over the weekend looking for a wiring diag for my KZN 130, I continued my search today around the internet and found two jpeg files on an Australian site which may or may not be of use to fellow members.

[ATTACH][/ATTACH]

I hope I have attached the files correctly.

John
