Help with Injector pipe fitting

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Help with Injector pipe fitting

    I did do a search but what I found with the info didnt make sense,ie
    looking at the pump, the order in which the pipes are connected are
    3 1
    4 2

    is this definately correct?,so cylinder pipe no.1 goes to top right thread
    pipe no.2 bottom right
    pipe no.3 top left
    pipe no. 4 bottom left

    I marked the top of the pipes before removal and if fitting them in the above order
    no. 1 pipe for example is too long for top right? and so on,

    I find they fit better as no.1 pipe bottom right (block side)
    no.2 pipe bottom left (wing side)
    no.3 pipe top right (block)
    no.4 pipe top left (wing)

    Have not torqed them up yet just wanted to make sure 100% and info appreciated!

  • #2
    http://www.hiluxsurf.co.uk/showthrea...=injector+pipe

    The diagram I posted there confirms that the correct way is as you described:


    I find they fit better as no.1 pipe bottom right (block side)
    no.2 pipe bottom left (wing side)
    no.3 pipe top right (block)
    no.4 pipe top left (wing)


    However make sure someone hasn't fitted the injector pump 180 degrees out which is what had been done to my 3.0

    Comment


    • #3
      Originally posted by wishbone View Post
      http://www.hiluxsurf.co.uk/showthrea...=injector+pipe

      The diagram I posted there confirms that the correct way is as you described:


      I find they fit better as no.1 pipe bottom right (block side)
      no.2 pipe bottom left (wing side)
      no.3 pipe top right (block)
      no.4 pipe top left (wing)


      However make sure someone hasn't fitted the injector pump 180 degrees out which is what had been done to my 3.0
      Hi Wishbone, I read your post I see what you mean, I can confirm now my pump is fitted the correct way up, I am guessing the people giving advice on other posts may have had a pump fitted the wrong way up?

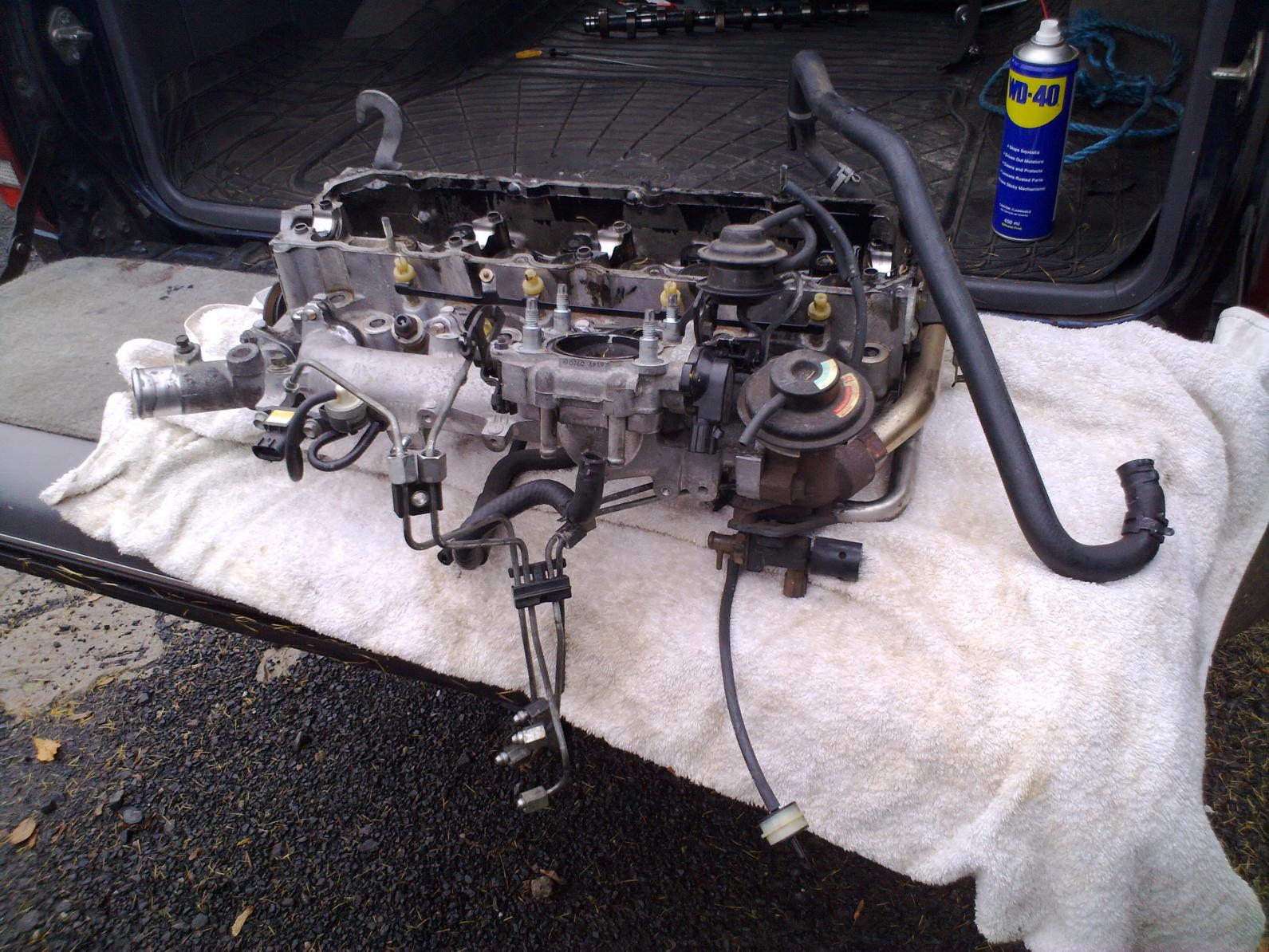

      ony thing is when I took head off(ages ago) the pic shows 1 and 2 look the same as the diagram but 3 and 4 are opposite way round?
      Attached Files

      Comment


      • #4
        I'm guessing the other posts were by people with 2.4's

        Comment


        • #5
          Originally posted by wishbone View Post
          I'm guessing the other posts were by people with 2.4's
          they were in the 3.0 section, I am guessing that could be it though, wow that could really screw someone up! lol lucky I am thorough!!

          Comment


          • #6
            4-3
            2-1

            is for the 3Ltr.

            The other is for the 2.4Ltr.

            Nev
