Show me pics of your...

[Jonny77]

....side exit exhaust.

Especially if you have used a Transit system as I have a complete one sitting in the garage ready for butchery. Pics of under the vehicle would be good showing the joins etc.

Ta

[Apache]

Mines not from a transit, but from bits from Janspeed.

[dieselboy]

wont the transit exhaust come out before the back wheel and not after like apaches?

mine is just like the one in the pics abobe except it doesnt go through the bumper, and i had it fabricated to a 45degree angle and its not 'slash' cut like the one above either.

apache when are you going to get another one the other side?

[MudSurfer]

This is just an "Outrageous" rework of the original pipe...

[Bibs]

....side exit exhaust.

Especially if you have used a Transit system as I have a complete one sitting in the garage ready for butchery. Pics of under the vehicle would be good showing the joins etc.

Ta

I have tried to take pics before an they didnt come out very well - will have another attempt when I get in tonight.

[Jonny77]

I am looking to bring it out in front of the rear wheel. My bumper and corner pieces are so battered I am going to remove them and fab up a tubular jobby. I think the flexi section will need to be cut and shut to shorten it in order to get a silencer back in there and allow for a 90 degree bend and tail pipe. I ran it last night without silencers but its a bit too much for general use!
Keep 'em comin chaps, I need inspiration!

[Bibs]

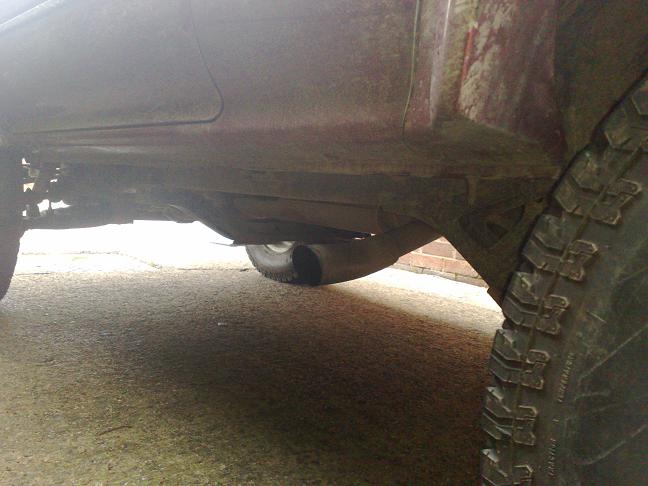

As promised but still crap at takin pics.











Not sure its of any help - can take some sat when its on the ramp if you want.

[plumb bob]

where?

Hmmmmm upload problems

[Jonny77]

As promised but still crap at takin pics.

Not sure its of any help - can take some sat when its on the ramp if you want.

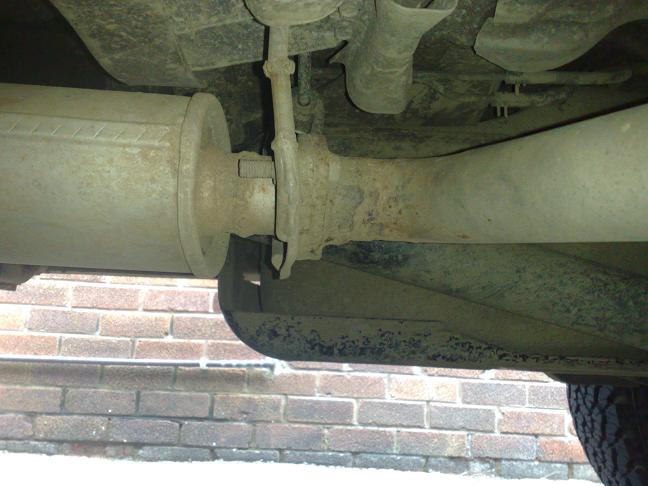

Thats great, thanks. Thats kind of what I am thinking of doing, shorten or dump the flexi section and replace with a silencer and tailpipe. I guess that silencer of yours has had the front flange off of the flexi pipe welded on so it seals against the front pipe.

[Bibs]

Thats great, thanks. Thats kind of what I am thinking of doing, shorten or dump the flexi section and replace with a silencer and tailpipe. I guess that silencer of yours has had the front flange off of the flexi pipe welded on so it seals against the front pipe.

Errrm you will have to ask Bushwhacker how he made it - I bought it off him already built and just had it fitted.

[surfenstein]

here you go,try this one.its not a transit system,but should give you a general idea.

[Diezel Weazel]

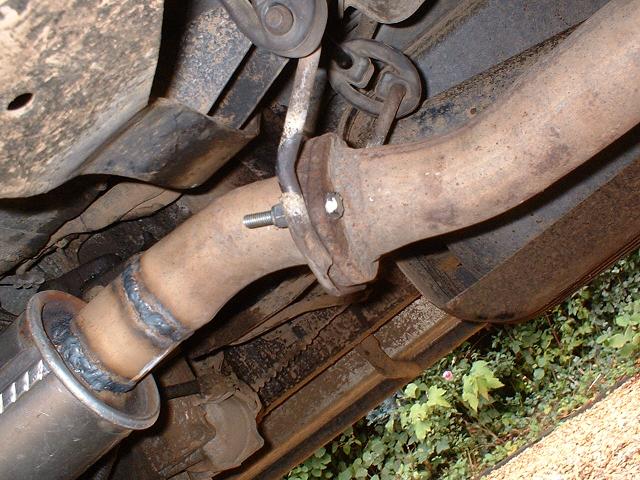

Here's my side exit, Cut n shut the flexi n insert an Audi silencer !!!!
